Product Details:
Place of Origin: China
Brand Name: H-WELDING
Certification: CE
Model Number: Z25
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: Mainframe naked in container, electrical control box in plywood cases (Non fumigation) then in container.
Delivery Time: 15 working days after received your payment
Payment Terms: 30% T/T as advance payment when sign the contract, 70% T/T as balance payment before delivery or 100% irrevocable LC at sight
Supply Ability: 30sets per month
Contact Now
Detailed Product Description
Product Name: Z25 H Beam Production Line Assembly Machine Application: H Beam Track Welding
Inverter: Mitsubishi Welder: Spot Welding
Available Flange Height: 2500mm Linkage Control: Available
Input Conveyor: 2.6m*3 Output Conveyor: 2.6m*3
High Light:

assembly machine

,

h beam assembling machine

Z25 H Beam Production Line Assembly Machine In Steel Structure Heavy Duty



Specifications:



Model

Z15

Z18

Z20

Web Size (mm)

Height

200-1500

200-1800

200-2000

Thickness

6-32

6-32

6-32

Length

2000-15000

2000-15000

2000-15000

Flange size(mm)

Width (mm)

200-800

200-800

200-800

Thickness (mm)

6-40

6-40

6-40

Length (mm)

4000-15000

4000-15000

4000-15000

Assembly speed (m/min)

0.6-6

0.5-6

0.5-6

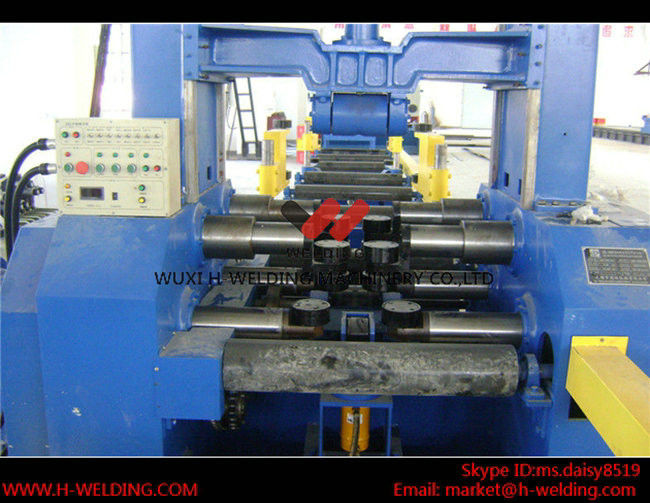

H Beam Production Line Heavy Duty Assembly Machines for Steel Structure 0



1— upper press cylinder;2—upper beam;3—column;4—lifting beam;  5—upper press roller;6—arc-guiding device;7—web clamping device;8—flange clamping device; 9—underside beam;  10—wall board;11—main transmission roller;12—coupler; 13—motor reducer;

Note: Picture is only for reference. Mounting-positions of elements could be adjusted

according to practical condition.



Description:



  • The automatic alignment is accurate; do not need to adjust every time (eccentricity roller is used for inching adjustment).

  • During assembly, the hydraulic stopping rack at both sides can ensure alignment of end side of web and flange.



Applications:



  • The upper press-beam is adopted with right and left 4 groups of guide-way, ensuring pressing stability.

  • The automatic spot-welding arc-tracing unit is driven with light-duty oil cylinder, without the need of compressed air.



Competitive Advantage:



  • The control system adopts Japanese “MITSUBISHI” PLC controller, assembly speed driven with main motor is adjusted via A.C. inverter.

  • Hydraulic system is the standard product produced by china and foreign company joint venture Company, and equipped with fine filter, ensuring long and reliable performance of electro-magnetic valves.

H Beam Production Line Heavy Duty Assembly Machines for Steel Structure 1

H Beam Production Line Heavy Duty Assembly Machines for Steel Structure 2
