Beijing Automobile Spare Part Co.,Ltd.
High quality, Best service,Reasonable price.
Product Details:
Payment & Shipping Terms:
|
High Light: | hepa air filter,high temperature hepa filter |
---|

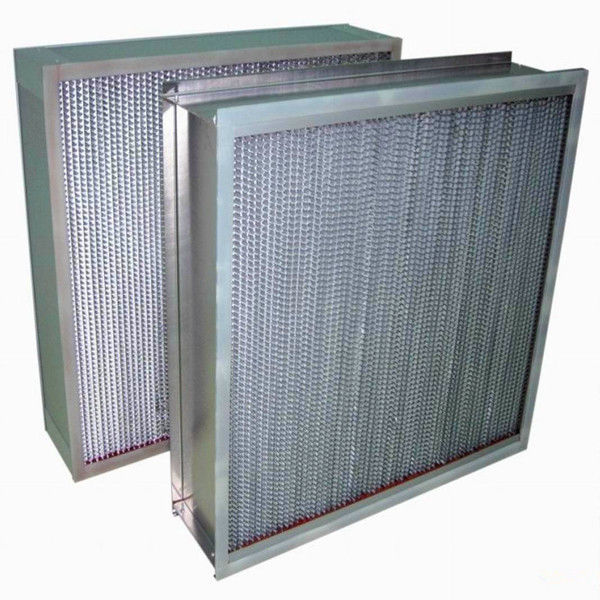

Aluminum Foil Pleat High Temperature Hepa Filter For Industrial Air Filter System
Quick Detail:
1. air filter manufacturer
2. competitive price
3. can be accepted custom size
4. high efficiency
5. Stainless steel frame
6. Aluminum foil
7. Max. temperature : 350 centigrade
Material and Performance
Frame Material
|
Stainless steel |
Filter medium |
Glass fiber paper,pp fiber |
Partition |
Aluminun foil(PTP) |
Sealant |
High temperature resistant sealant from import |
Max. temperature |
350°C |
Pressure drop-Air flow
Specification and Technical parameters:
Model |
Nominal Size WxHxD (inch) |
Actual Size WxHxD(mm) |
Rated Airflow (m³/h) |
Initial Resistance (pa) |
Efficiency (Colorimetric Method) /Class |
|
GYL |
19x19x8-2/3 |
484x484*220 |
1000 |
≤220 |
≥99.99% |
|
GYL |
24 x 24 x 5-7/8 |
610x610x150 |
1000 |
|||
GYL |
36 x 24 x 5-7/8 |
915x610x150 |
1500 |
|||
GYL |
24 x 24 x 11-3/5 |
610x610x290 |
1900 |
Speciality :
1. Waveness aluminum foil pleat or the paper pleat can make sure of the filtration material completely the thickness of the aluminum foil is 0.03mm the height of the waveness is 4mm,which make sure of the filtration area and the quality of the filter.
2. The filtration material is the high density paper which is made from super fine fiberglass, pleat the filtration paper (made from the fiberglass) in order to enlarge the filtration area as large as possible, and to slowdown the filtration speed. It is very important for the hepa filter.
3. Laser tested one by one, temperature resistance up to 80°C small resistance high efficiency ,long service life
Applications :
1. Used for the high temperature cleanliness equipment or production line.
2. Production lines.
3. Applied to the terminal filtration for the air conditioning filtration system, used in hospital, electronic industry, food, precision instrument, electron semiconductors.
We are manufacturer of air filter, We have 10 years of production experience, with the domestic and some of the large enterprise factory have cooperation.
Maybe we are not the best, but we can do the best, as long as you trust us, we willing to make the Greater Progress with you,and achieve a win-win situation.
Thank you for browsing our site. If you are interested in our air filters and want to know more about the air filters, please feel free to contact me for the detail. Waiting for your inquiry!
