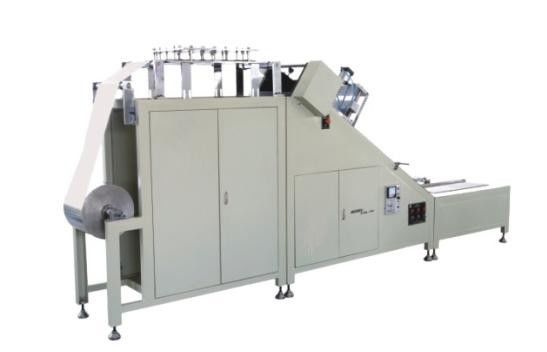

High Speed Air Filter Production Line for Separated Aluminum Foil Corrugating , 20 sheets / min

High Speed Air Filter Production Line for Separated Aluminum Foil Corrugating , 20 sheets / min

General Description

It is technically used in shaping the aluminum foil corrugation of separated high efficiency filter. We can customize the rollers according to the pleating height and pitch of waves.

Specification

  1.Max Width: 300m

  2.Max Coil Diameter: 1000mm

  3.Speed: 20 sheets/min (length 500mm)

  4.Power Supply: 380V/50HZ

  5.Motor Power: 0.75kw

  6.Working Air Pressure: 0.6Mpa

  7.M/C Weight: 600kg

  8.M/C Dimension: 3400*510*1600

Feature

1.  The length can be set freely and cut off automatically.
2. The roller speed can be controlled through variable speed motor to accommodate different working conditions.
3.  It is equipped with the aluminum edge double device while corrugating which prevent the fiber glass form breaking.
4.  High efficiency and simple operation.
5. Use the gathering cylinder to collect products into the container.

Description

Wenzhou Changjiang Filter Machine Co.Ltd the director member of China Internal Combustion Engine Industry Association Filter Branch and the member of China Automobile Manufactures Association Filter Committee, is the complete equipment enterprise specialized in producing filter manufacturing equipment, filter test equipment and molds.
