Thermal Bonded Glue Free Waddings Making Machine For Quilts 2300mm / 2500mm

Product Details:

Place of Origin:	China
Brand Name:	AL
Certification:	CE,ISO9001
Model Number:	ALPJ-2300； ALPJ-2500

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiations
Packaging Details:	Wooden case; carton
Delivery Time:	90days
Payment Terms:	T/T;L/C
Supply Ability:	100sets/year

Contact Now

Detailed Product Description

High Light:

wadding production line

polyester wadding machine

Thermal Bonded Glue Free Waddings Making Machine For Quilts 2300mm / 2500mm

Quick Details

1> net production width : 2300mm , 2500mm

2> production weight : 60~2000g/m^2

3> production capacity 700kg/h

4> heat souring : heat conducting oil , direct ignition

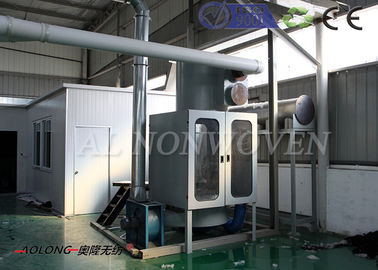

Main Machines Of The Production Line

name	function
Fine opening machine 1set	Opening fibre
Chute feeder 1set	feeding
Doulbe-cylinder double-doffer carding machine 1set	Carding
Cross lapper 1set	lapping
Cutting and winding machine 1 set	Cutting and winding

Usage And Characteristics

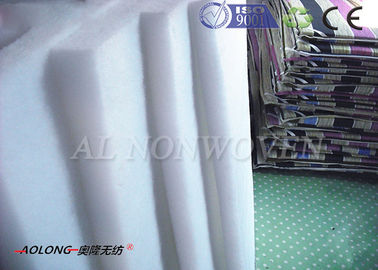

This production line mainly produce stiff wadding and glue free wadding, which used for exclusive mattress, sofa cushion, tatami, filtering material and acoustic, etc. Wadding dryer adopts front and back spraying. Three kinds of heating method such as vapor, heat conducting oil or igniting directly. Top-blowing and bottom-suction with 6 layer air duct, hot air penetration and convection with high heat efficiency.

Machine Advantage

1. Computer control and reliable running
2. Good after-sales service system and best reputation in international market
