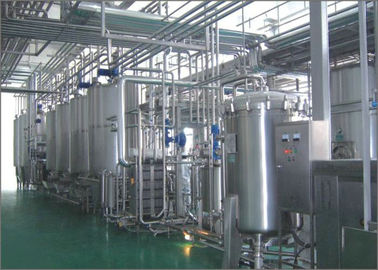

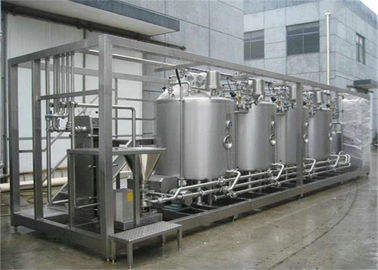

High Efficient Pasteurized Milk Production Line For Gable Top Carton , Plastic Bottle and Bag

High Efficient Pasteurized Milk Production Line For Gable Top Carton , Plastic Bottle and Bag

  • High Efficient Pasteurized Milk Production Line For Gable Top Carton , Plastic Bottle and Bag
  • High Efficient Pasteurized Milk Production Line For Gable Top Carton , Plastic Bottle and Bag
  • High Efficient Pasteurized Milk Production Line For Gable Top Carton , Plastic Bottle and Bag
  • High Efficient Pasteurized Milk Production Line For Gable Top Carton , Plastic Bottle and Bag
High Efficient Pasteurized Milk Production Line For Gable Top Carton , Plastic Bottle and Bag
Product Details:
Place of Origin: Shanghai, China
Brand Name: Joylong
Certification: ISO
Model Number: 1000L/H-10000L/H
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD100000-1000000
Packaging Details: all equipments and machines packed in worthy of sea shipping
Delivery Time: in 90 days upon receipt of advance payments
Payment Terms: 30% of total amount paid by T/T in advance and the balance paid by T/T or L/C at sight
Supply Ability: 10set/Month
Contact Now
Detailed Product Description
Package: Gable Top Carton, Plastic Bottle, Plastic Bag Material: Milk Powder, Fresh Milk
Capacity: 1000l/h-10000l/h Shelf Life: 15days
Warranty: One Year Installation: Turn Key Solution
High Light:

small milk processing plant

,

milk processing machine

High Efficient Pasteurized Milk Production Line For Gable Top Carton , Plastic Bottle , Plastic Bag


1. Water Treatment section:
Sand filter
Activated carbon filter
Water softener
Precision filter
Reverser osmosis filter
Electrical control system
UV filter
Water storage tank
2. Milk Receiving Section
Out door storage tank
Milk weight tank
Milk receiving tank
Temporary storage tank
Duplex filter
Milk Separator
Plate heat exchanger
Milk Storage Tank
3. Sugar Melting System
Hot water tank
Plate heat exchanger
Round high speed emulsification tank
Water-powder mixer
Mixing tank
4. Sterilization Section
Plate pasteurizer
warm keeping tank
High pressure homogenizer
5. Filling Packing Section
According the customer require.
6. CIP Cleaning Section
Acid tank
Alkali tank
Hot water tank
Pleat heat exchanger
Cleaning pump
7. Chiller Section
Chiller
Cooling tower
Chiller water tank
8. Compressor
Air compressor
Air filter
Air dryer
Air storage tank
9. Cooling Room


Specification:


Milk processing line

NO.

NAME

MAIN TECHNOLOGY PARAMETER

1

MILK RECEIVESTORAGEAND CREAM SEPARETOR UNIT

2

electron pound scale

maximum weighing 500KG

3

milk weighing tank

made of SUS stainless steal, single layer, product feeded in through 40 mesh filter net, CIP cleaning ball

4

milk acceptor

SUS304 stainless steel, single layer, CIP cleaning ball

5

milk pump

SUS304 stainless steel, pump lift 24M, Hard Alloy Mechanical Seal, Inner Shell Bright-Polished

6

twin piping filter

SUS304 stainless steel, two pipe, Stainless Steal Filter Element 100 Mesh

7

dish separator

auto residue discharge

8

chiling tank

SUS304 stainless steel, alveolate jacket, attached with compressor

9

milk pump

SUS304 stainless steel, pump lift 24M, Hard Alloy Mechanical Seal, Inner Shell Bright-Polished

10

PREPARING UNIT

11

blending tank

SUS304 stainless steel, heat insulated, top off- center votical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet

12

milk pump

SUS304 stainless steel, pump lift 24M, Hard Alloy Mechanical Seal, Inner Shell Bright-Polished

13

mini set of plate-type heat exchanger

SUS304 stainless steel, two stages,

14

high speed emulsification tank

SUS304 stainless steel, heat insulated, bottom high speed emulsifier, digital readout thermometer, supporters with adjustable feet

15

milk pump

SUS304 stainless steel, pump lift 24M, Hard Alloy Mechanical Seal, Inner Shell Bright-Polished

16

twin piping filter

SUS304 stainless steel, two pipe, Stainless Steal Filter Element 100 Mesh

17

sterilizing, homogenizing unit

18

UHT sterilizer

tub-type, sterilzing temperature 137 C, holding time 4S, full automatic control

19

high pressure homogenizer

40MPa, (starting box included)

20

temperature holding

SUS304, holding 300S

21

distributing plate

SUS304, 3 holes

22

cheesebutter processing unit

23

bufferying tank

SUS304 stainless steel, heat insulated, top off- center votical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet

24

milk pump

SUS304 stainless steel, pump lift 24M, Hard Alloy Mechanical Seal, Inner Shell Bright-Polished

25

cream seperator



26

bufferying container

SUS304, with cover

27

milk pump

SUS304 stainless steel, pump lift 24M, Hard Alloy Mechanical Seal, Inner Shell Bright-Polished

28

butter-churner

SUS304, stepless timing

29

cheese vat

SUS304, with heating jacket and insising device

30

pressor

SUS304, 6 heads

31

mould

SUS304, 10L, with cover

32

yogurt fermentation unit

33

fermentation tank

SUS304 stainless steel, heat insulated, top off- center votical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet

34

rotary pump

SUS304 stainless steel, Hard Alloy Mechanical Seal, manual stepless shift

35

plate cooler

SUS304, single stage, milk discharge at 4C

36

rotary pump

SUS304 stainless steel, Hard Alloy Mechanical Seal, manual stepless shift

37

filling unit

38

higher position tank

SUS304 stainless steel, heat insulated, top off- center votical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet

39

pasteurized milk filling machine



40

yogurt filling machine



41

CIP system

42

semi-auto CIP system

outer coat of SUS304 stainless steel material, inner shell of SUS316, single cleaning way, Concentrated acid/alcali tank adding system based on US technology, 100L× 2 acid/alcali Concentrate tanks

43

CIP return pump

SUS304 stainless steel, pump lift 24M, Hard Alloy Mechanical Seal, Inner Shell Bright-Polished

44

  installation part

whole milk processing line installation and commissioning



High Efficient Pasteurized Milk Production Line For Gable Top Carton , Plastic Bottle and Bag 0
