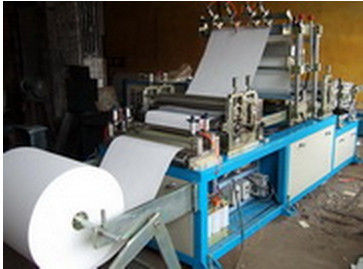

25.4mm Gluing Interval Filter Making Machine , Controlled by PLC and Monitor

25.4mm Gluing Interval Filter Making Machine , Controlled by PLC and Monitor

  • 25.4mm Gluing Interval Filter Making Machine , Controlled by PLC and Monitor
25.4mm Gluing Interval Filter Making Machine , Controlled by PLC and Monitor
Product Details:
Place of Origin: wenzhou,China
Brand Name: CHANGJIANG
Certification: CE,ISO9001
Model Number: CJWG-630-II
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: 25,000-45,000USD
Packaging Details: plywood cases
Delivery Time: 45days
Payment Terms: 30% T/T deposit, 70% T/T before shipment
Contact Now
Detailed Product Description
High Light:

Pleater Machine

,

Filter Machine Manufacturers



25.4mm Gluing Interval Filter Making Machine , Controlled by PLC and Monitor



General Description


1. This machine is professionally designed and used for mini-pleating and hot melt dispensing on the fiber glass or polypropylene etc filtration materials.

2. It is able to match different specifications of the filter elements, which is characterized with high productive efficiency and simple operation.



Description



1. This machine equips the cutting and trimming device, which us used to meet different filter     specifications.

2. This production line is stainless steel body and aluminum frame, which is strong, nice and long life.

3. Six sets of rollers circling placed on one machine, which is easily to be changed and to meet different specifications.

4. The hot melt melting very fast and the hot melt dispensing amount can be adjusted by the frequency converter.

5. High Productive efficiency and good smoothness.



Introduction



1. This machine is equipped with the paper edge cutting device;
2.  The pleating height can be adjusted freely, no need changing the rollers, The servo control system can accurately    ensure pleating neatly;
3 . Six options for dispensing: Continuously, separately, two sides, one side, auto and manual;
4 . The running speed of the machine can be regulated easily.
5 . The pleating height adjusted and the front-back movement of the paper collecting system can be regulated easily and steadily;
6 . The convey speed of the system is synchronized by the system through the computer regulation



Specification



Diameter of Element ≤600mm
Pleating Height Range 20mm-100mm(any six sizes among these ranges)
Product Speed 4-10m/min
The Interval of Gluing 25.4mm
The number of the Gluing 2*26line
Power Supply 380V/50HZ
Main Power 16kw
Working Air Pressure 0.6MPa
M/C Weight 700kg
Hot Melt M/C Dimension 900*1000*1500
M/C Dimension 7500*1050*1500



Feature



1.The main machine, conveyer belt and the hot melt applicator are all controlled by the PLC and monitor which is simple operation and fast speed.

2.Both the fiber glass pleating and hot melts dispensing on the same machine. The long conveyer belt and cooling fans are adopted after the pleating system. So to fast drying the hot melt and cut any length.

3.The travel distance of two pleats can be adjusted among certain scopes while hot melt dispensing, which avails the dryness and humidity of the hot melt and good for firmly folded.



Note



Furthermore, we can customize the paper pleating production line of different specifications.
