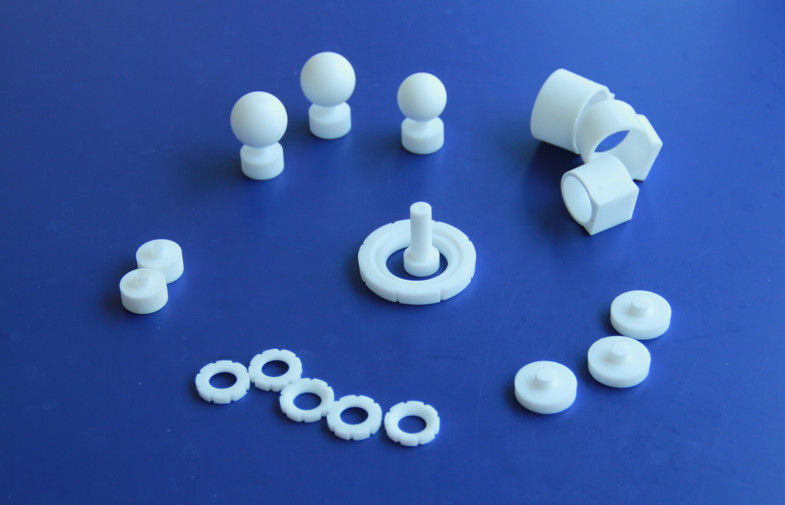

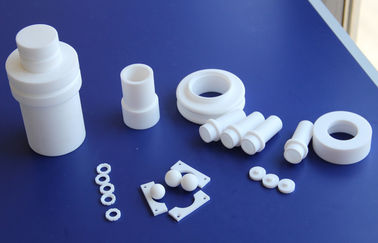

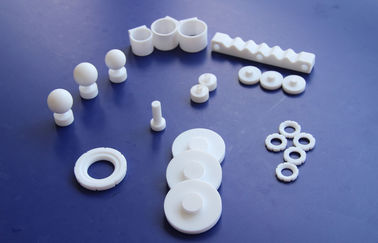

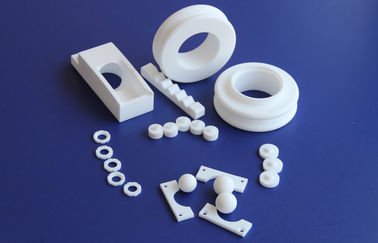

High Precision PTFE Machining Molded Parts , Glass Fiber Or Carbon Fiber Filled
Glass Fiber Filled PTFE Molded Parts
PTFE special articles machining main Features:
PTFE has excellent all-round properties performing well at both high and low temperatures, being corrosion-resistant, non-stick, self-lubricating and insulating. In addition, it has a low friction coefficient.
Function: For various types of electronic, electrical, automation equipment, industrial equipment components
Quick detail
1.High precision:0.001-0.002mm
2.Rich manufacture and export experience
3.All kinds of meterial
Property
We supply special compounds filled ptfe products in order meet specific applications requirments according to end use. ie. Glass fiber ,Carbon fiber ,MoS2 ,Graphite , Bronze , Pigmen
|
Glass Fiber:
|
Increases compressive strength, rigidity and wear.
Reduces creep and cold flow
Minimal effect on chemical and electrical properties
|
|
Carbon:
|
Increases compressive strength, hardness, wear, and load properties.
Good chemical resistance
Various types and amounts of carbon can be added to alter conductivity
|
|
Graphite:
|
Reduces coefficient of friction
Reduces initial wear
Increases strength
|
|
Molybdenum Disulfide:
|
Increases hardness, stiffness, and wear
Minimal effect on chemical and electrical properties
|
|
Bronze:
|
Increases hardness and wear resistance
Increases dimensional stability and compressive strength
Not suitable for corrosive or electrical applications
|
|
Product No. |
Filled compound and content by weight |
Tension strength MPa min |
Ultimate strength% min |
Compresive strength MPa min |
|
1 |
20% glass fiber |
10 |
120 |
16 |
|
2 |
25% glass fiber |
10 |
100 |
16 |
|
3 |
20% glass fiber graphile |
10 |
120 |
16 |
|
4 |
60% bronze |
10 |
80 |
20 |
|
5 |
15% carbon fiber |
11 |
130 |
16 |
|
6 |
24% bronze 12%glass fiber 6% graphite |
9 |
100 |
16 |
|
7 |
15%glass fiber 105polyikmide 5% graphite |
10 |
120 |
16.7 |
|
Item Name |
Precision Part |
|
Quality Assurance |
ISO9001:2008 Certified |
|
Machining Equipment |
Machining Center / CNC Lathes / Grinding Machines / Milling Machines / Lathes / Wire-cuts / Laser Cuts / CNC Shearing Machines / CNC Bending Machines / etc. |
|
Materials |
Aluminum Alloy: |
|
5052 /6061/ 6063 / 2017 / 7075 / etc. |
|
Brass Alloy: |
|
3602 / 2604 / H59 / H62 / etc. |
|
Stainless Steel Alloy: |
|
303 / 304 / 316 / 412 / etc. |
|
Steel Alloy: |
|
Carbon Steel / Die Steel / etc. |
|
Other Special Materials: |
|
Lucite / Nylon / Bakelite / etc. |
|
We handle many other type of materials. Please contact us if your required material is not listed above. |
|
Surface Treatment |
Blacking,polishing,anodize,chrome plating,zinc plating,nickel plating,tinting |
|
Inspection |
Our Mitutoyo Tool Microscope can measure up to 300mmX x 175mmY x 220mmZ |
|
File Formats |
Solid Works,Pro/Engineer, AutoCAD(DXF,DWG), PDF,TIF etc. |
Specification
1. Material to process: aluminum, stainless steel, carbon steel, brass, lucite, bakelite.
2. Precision: 0.010-0.002mm
3. Equipments: CNC lathe, processing center, miller, cylindrical bore grinder, surface form grinder, punching machine, etc.
4. Parts are used on vehicles, printing machines, food processing machines, textile machines, electronic machines, etc.
5. We are able to supply sheet metal, mechanical parts machining, surface treatment such as anodize and plating according to our customers' requirement.
6. Our products have been exported to Japan, America, Canada, England and Belgium, and we can assure the quality.
7. We have the ability to communicate with English, Japanese and Chinese
8,Quality Assurance:ISO9001:2008 Certified
Production Flow
Production
Application
Widely used in petrochemical, instrument, space, chemical, electric, cement metallurgy industries.
