Accurate Pipe Milling Machine

Accurate Pipe Milling Machine

  • Accurate Pipe Milling Machine
  • Accurate Pipe Milling Machine
  • Accurate Pipe Milling Machine
  • Accurate Pipe Milling Machine
Accurate Pipe Milling Machine
Product Details:
Place of Origin: China
Brand Name: H-WELDING
Certification: Certification of original
Model Number: GD20
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Mainframe naked in container, electrical control box in plywood cases (Non fumigation) then in conta
Delivery Time: 30 days
Payment Terms: 30% T/T as advance payment when sign the contract, 70% T/T as balance payment before delivery or 100
Supply Ability: 10 sets
Contact Now
Detailed Product Description
Beveling Angle: 25°-55 ° Type: Pipe Milling Machine
Usage: Steel Sheet/plate Edge Milling And Beveling Rotary Speed Control: VFD
Main Electric Elements: Siemens / Schneider Applications: Pressure Vessel, Power Plant
High Light:

ipe Chamfering Machine

,

Plate Edge Milling Machine

 Pipe Milling Machine / Milling And Beveling Machine / Chamfering Machine




Quick Detail:


  • Using for steel sheet/plate edge milling and beveling.
  • Used for seam preparation ahead of welding.
  • Servo motor, reducer, decompression valve, gas pipe and solenoid valve, cutting torches are all international famous brand, ensuring the quality stable and reliable.



Description:

This chamfering machine employs the principle of rolling shear to shear the edge of the steel sheet according to the angel needed, to obtain the bevel for welding. With a high precise, smooth surface, without the need to clear burrs, it takes the advantage of convenience, efficiency, energy-saving etc.
The machine is accurate in size, bright and smooth in surface, and is formed once. There is no need to make de-burring; it is convenient, very high in working efficiency (3m/min) and low in energy consumption.


Applications:

It is necessary equipment for the manufacturer of pressure vessel, power plant, shipping, chemical industry, steel structure and so on.




Specifications:


TYPE

GD20

The example of the steel plate

Q235

16Mn

IC18NI9TI

The max. groove width(mm)

20

16

12

The beveling angle

25°-55 °

The min straight edge (mm)

2





Competitive advantage:

1. Main electric elements are Siemens/Schneider.
2. VFD rotary speed control, improving the reliability of operation.
3. Steel and rubber roller or PU roller which can ensure a long time using.
4. With lubrication system.
5. Accept testing before delivery.
6. Accepy special design and custom.

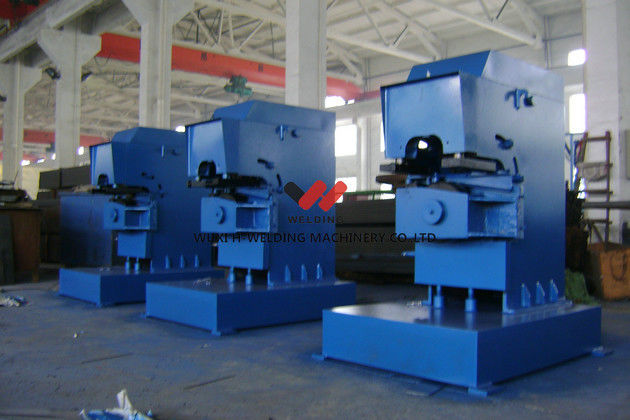

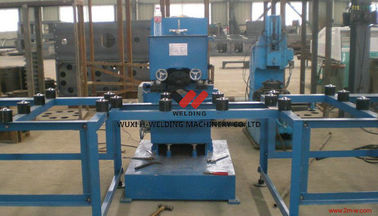

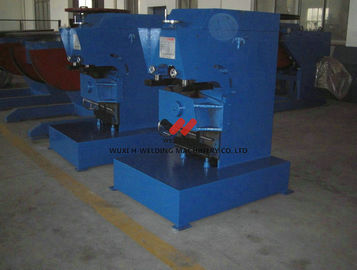

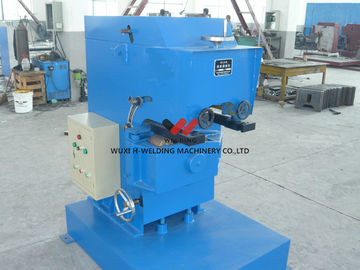

Below are some detailed pictures for your reference:




Accurate Pipe Milling Machine 0



Accurate Pipe Milling Machine 1



Accurate Pipe Milling Machine 2



Accurate Pipe Milling Machine 3




Why h-welding?

Because we work closely with manufactures to understand their needs and provide the right machine solutions, accessories and consumables to support business growth. We are committed to providing each customer with the finest service and support available.  Reliability and quick response all backed by our fully trained support staff and technical support center in H-WELDING.


HISTORY-
10 years focus on this industry, That means we know what works and what does not when it comes to welding equipment.


QUALITY-
Our machines are built to stringent certification.  There is  NO OTHER  welding equipment built to higher standards than the H-WELDING. Reputation is our life.


PACKAGE-
Professional container package team, ensure a prefect machine can be send to your hand.


INSTALLATION AND COMMISSIONING-

A young but professional installation team, active all round the world with our machine, like a your friend always at his service.


AFTER SERVICE-

Feedback with your problem or pictures, within 24hour, your will get the answer.
