Place of Origin: | China |
Brand Name: | Nide |
Certification: | None |
Model Number: | ND-LHL-QSF4XC-S2 |
Minimum Order Quantity: | 1 pc |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden case suitable for sea transportation |
Delivery Time: | 45 working days |
Payment Terms: | T/T, L/C |
High Light: | automatic turning machine,rotor turning machine |
---|
Specifications :
Concentricity | ≤0.0025-0.0035mm |
Roundness between bars | ≤0.0015-0.0025mm |
Armature diameter range | 20~85mm |
Surface roughness | ≤Ra 0.40 |
Shaft length range | 32~200mm |
Armature shaft diameter range | 3~17mm |
Commutator O.D. range | 12~40mm |
Weight each cutting | Max 0.20mm |
Speed frequency range | 0~90Hz |
Control | PLC system |
Cutting speed | PLC adjustable |
Efficiency | Cycle≤10s per pc |
Air pressure | 4~6kg/cm2 |
Fixture | Diamond V block |
Motor Power | 2.5KW |
Frequency | 50/60Hz |
Weight | 1100Kg |
Voltage | AC220V±10% |
Machine dimension | 850mm x 950 mm x 1,830mm |
Description:

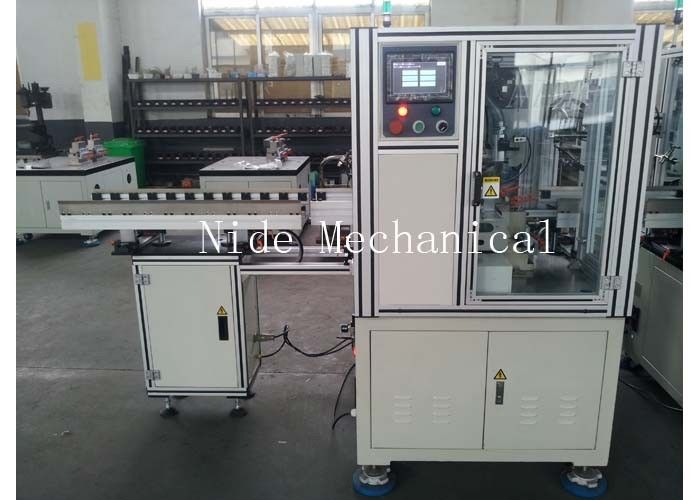

This machine is suitable for turning commutator. With advanced design, good shape and high performance, this machine adopts servo control for cutter moving and turning. Mechanical parts are imported, thus the machine is high efficiency and strong reliability.
The cutter moving in axial or radial direction is controlled by ball screws which are driven by three spindle servo motor. Turning times(4 times total) and cutter feeding value(≥1um) could be set up on touch screen according to user’s requirement. Three spindle servo motor controlling ensures the stable and precise cutter feeding.
Meanwhile, equipped with an automatic feeding device and mechanical arm, this machine can achieve a fully automatic operation.
Servo motor drives the belt rotating, meanwhile, the friction of flat belt and rotor surface make the rotor shaft high speed rotating on V block. Equipped with lubrication device and aluminum alloy frame, this machine features advance technology and modern shape, has easy operation system and self-checking system.
Applications:
This machine is suitable for commutator turning, it’s widely used in the motor field, such as wiper motor, vacuum cleaner motor, mixer motor, window lifter motor, condenser motor, power tool motor, DC motor, etc.
This machine is also suitable for armature within the specification of the above table.
Competitive advantages:
This machine is controled by PLC. Equipped with an automatic feeding device and mechanical arm, this machine can achieve a fully automatic operation. Meanwhile, equipped with lubrication device and aluminum alloy frame, this machine features advance technology and modern shape, has easy operation system and self-checking system.
