Axil Distance: | 3050 + 1130 Mm | Cylinder: | Quad In-line |
---|---|---|---|
Rated Power: | 136 KW | Electricity: | 24V |

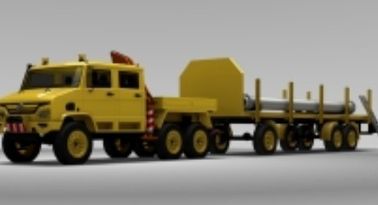

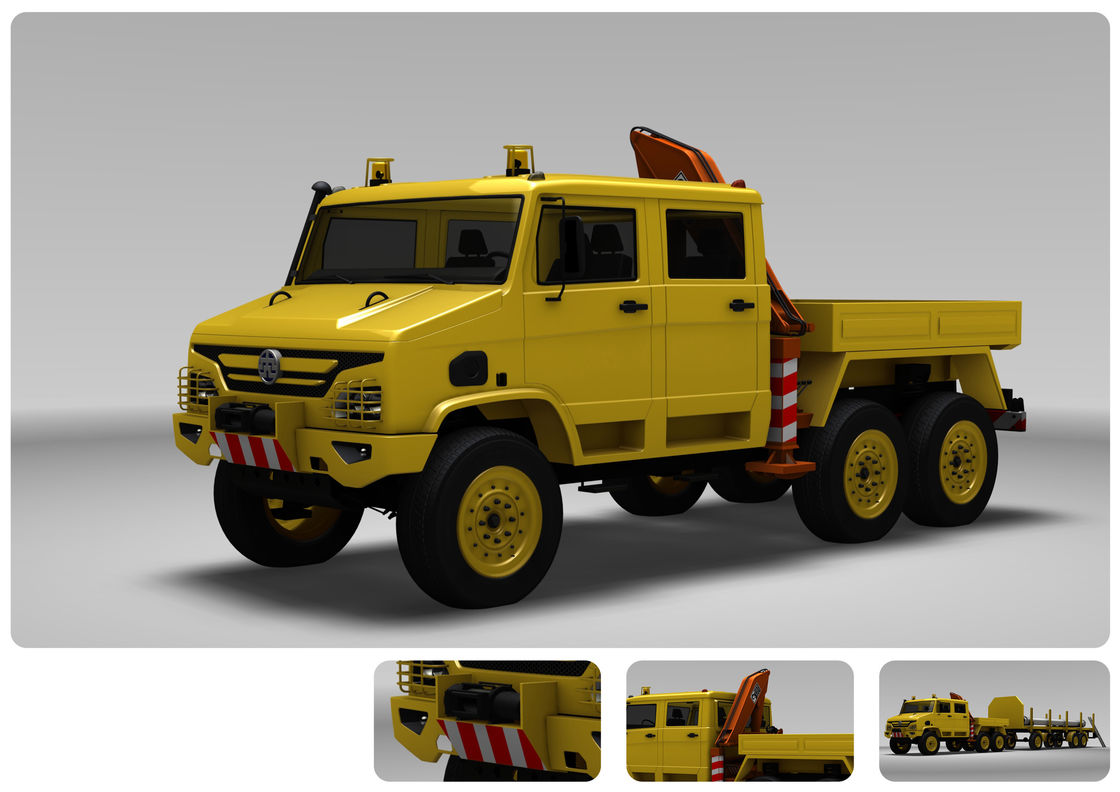

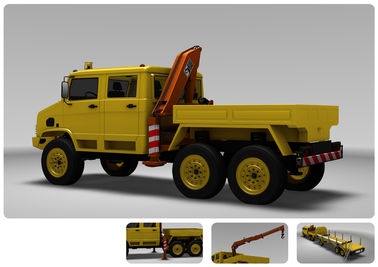

Pipeline repair vehicle
Platform: XL 2090S
Purpose: the maintenance of the underground pipeline such as oil pipeline or water pipeline.

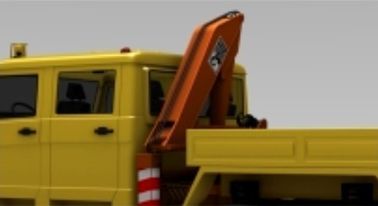

Appendix: winch, telescopic boom, can be equipped with the pipeline transport semi-truck.
Technical data:
Platform |
|
Total length |
5487 mm |
Total width |
2250 mm |
Total height |
2390 mm |
Axil distance |
3050 + 1130 mm |
Wheel distance |
1914 mm |
Total weight |
8510 mm |
Power |
|
Engine |
4.5L Cummins |
Cylinder |
Quad in-line |
Rated power |
136 KW |
Engine can be replaced |
136 KW Cummins; 160 KW Styer |
Electricity |
|
Electricity |
24V |
Driving data |
|
Highest speed |
115km/h |
Total distance |
750km |
The main fuel tank |
140L |
The external tank |
25L |
Gear and transmission |
|
Clutch |
Hydraulic control |
Gear box |
The connection of transmission and transfer case |
Transmission |
Hand control |
Transfer case |
second gear |
Traction |
|
Traction device |
Towing hook, air and electric socket |
Traction device can be replaced |
Hydraulic winch, A/C, PTO, ABS, exhaust device |
The shortest distance off the ground |
440mm |
Back rack angle |
43· |
The smallest turning diameter |
16m |
Ramp angle |
55.5· |
Angle of departure |
52· |
Perpendicular obstacle height |
550mm |
Driving side slope |
>40% |
Height of the perplex wall to overcome |
450mm |
Width of the ditch to overcome |
750mm |
Depth of the water to overcome |
1000mm |
The climbable gradient degree |
100% |
Tyre |
335/80R20 |
Adaptable environmental temperature |
-20℃——46℃ |
Adaptable altitude height |
≥5500m |
Adaptable environmental humidity |
≥95% |
Brake |
Two tube brake system |
Stationary |
Central stationary |
Axle and suspension |
|
Front axle and rear axle |
Portal axle, hub reduction, differential lock |
Suspension |
Spiral spring, telescopic shock absorber |
Steering |
Power Steering |
