Beijing Automobile Spare Part Co.,Ltd.
High quality, Best service,Reasonable price.
Product Details:
Payment & Shipping Terms:
|
Product Name: | DAF Clarifier | Application: | Water Treatment |
---|---|---|---|
Material: | CS Or SS | Standard: | ISO |
Capacity: | 1-100m³/h | Structure: | Compact Connection |
High Light: | oil water separator,DAF Separator |

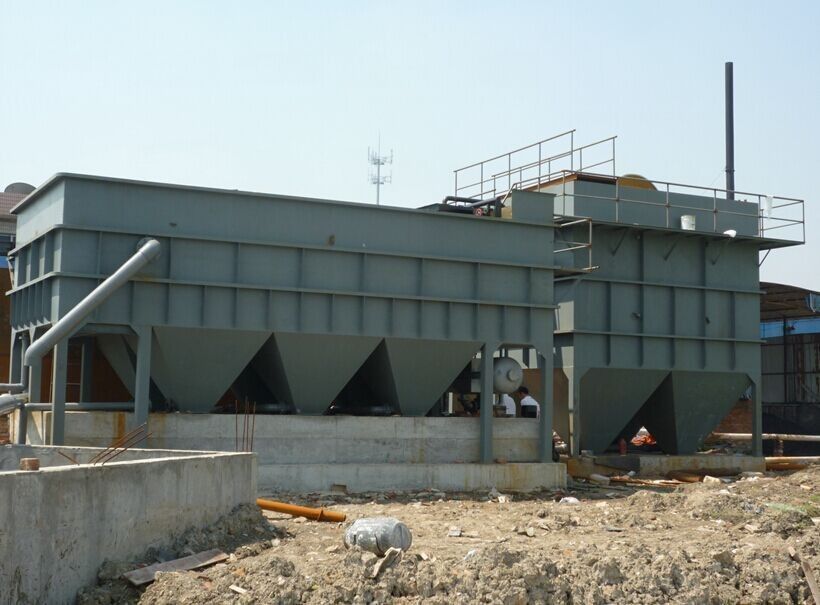

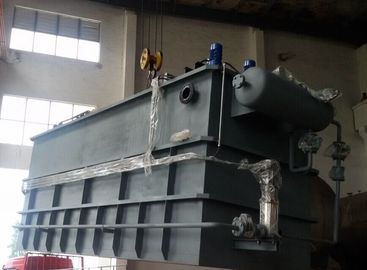

Steel structure DAF Separator for separation of suspended solids , fats
Principle of DAF clarifier
The DAF Separator provides effective separation of suspended solids, fats, oils and greases from liquids by dissolved air flotation. Flotation of the solids is accomplished by the introduction of tinny air bubbles into the process water. As the bubbles rise, they attach themselves to the particales in suspension and carry them to the surface for removed.
Main Structure
1), Air flotation machine: steel structure, it is the main body and core of DAF, which inside is composed of releaser,uniform distribution device,sewage pipe,outlet pipe,sludge tank and scraper system etc.
Releaser set in the central of air flotation machine, it is the key parts of producing microbubbles. The dissolved air water from dissolved air tank is fully mixed sewage in here, suddenly release, producing vigorous agitation and vortex, then form diameter 20-50UM microbubbles, it adhere to flocculating constituent in sewage, thus reduce the flocculating constituent proportion and ascend, cleaning water will be separated out thoroughly. Outlet pipe uniform distribution the bottom,and via 1pc erect main pipe connect to top overflow, overflow exit equipped with water level regulating handle, convenient to adjust water level in tank,. Discharge pipe install in bottom of tank, used to discharge sediment deposit in tank bottom. The tank body equip with sludge tank, the scraper set in the sludge tank, the scraper rotation constant, continuous scrape the floated sludge into sludge tank, then flow automatically into sludge pond.
2) Dissolved air system is mainly composed of dissolved air tank, air storage tank, air compressor and high pressure pump, dissolved tank is the critical parts of system, its function is realize water and air fully contact , speed up air dissolve, which is a closeness Withstand Voltage steel tank, its inside equip with baffle plate,sleeve, to speed up air and water speed, improve dissolved air efficiency.
3) Chemical agentia: steel round tank, used to dissolve storage liquid medicine.
Specifications
Type |
Treatment |
Tank |
Tank |
Tank |
Pump |
Air compressor |
Skimmer |
SOR-1 |
1m³/h |
1400 |
550 |
1100 |
0.55 |
0.55 |
0.18 |
SOR-2 |
2 m³/h |
1800 |
700 |
1300 |
0.55 |
0.55 |
0.18 |
SOR-3 |
3 m³/h |
2800 |
800 |
1900 |
0.75 |
0.75 |
0.37 |
SOR-5 |
5 m³/h |
3000 |
1000 |
1900 |
1.1 |
0.75 |
0.37 |
SOR-10 |
10 m³/h |
4000 |
1200 |
2100 |
1.5 |
0.75 |
0.37 |
SOR-15 |
15m³/h |
4500 |
1500 |
2100 |
2.2 |
0.75 |
0.37 |
SOR-20 |
20m³/h |
4500 |
1800 |
2100 |
2.2 |
0.75 |
0.37 |
SOR-30 |
30m³/h |
5500 |
2000 |
2100 |
3.0 |
0.75 |
0.37 |
SOR-40 |
40m³/h |
6000 |
2200 |
2100 |
5.5 |
0.75 |
0.37 |
SOR-50 |
50m³/h |
6000 |
2700 |
2100 |
7.5 |
1.5 |
0.37 |
SOR-60 |
60m³/h |
7000 |
2800 |
2100 |
7.5 |
1.5 |
0.37 |
SOR-70 |
70 m³/h |
8000 |
3000 |
2100 |
11 |
2.2 |
0.55 |
SOR-80 |
80m³/h |
9000 |
3200 |
2100 |
11 |
2.2 |
0.55 |
SOR-100 |
100 m³/h |
9000 |
3600 |
2100 |
15 |
2.2 |
0.55 |
