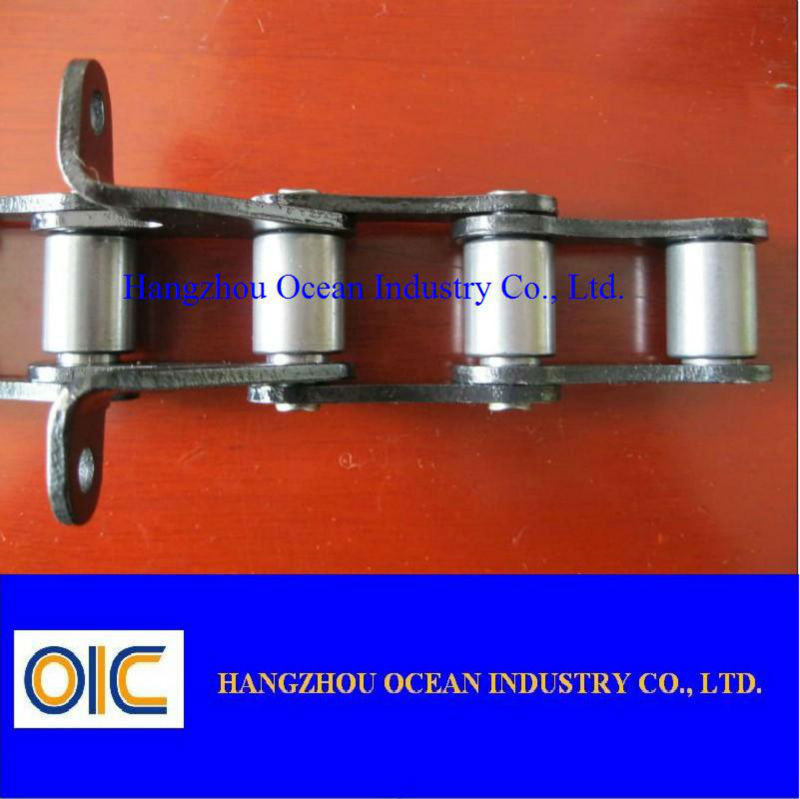

Alloy Steel Transmission Spare Parts Engineering Bush Chain For Electronic Products
Quick Detail:
Agricultural Chain
Alloy Steel material
Standard and non-standard chain available
With high quality and competitive price
Prompt delivery
Packing as per customer’s demand.
Description:
Agricultural Chain
1) Chain NO. : S32, S45,S51,S52,S55,CA650, CA550,CA557,CA550V, CA555,CA2060H, 38.4R,38.4VB,S38, C208B,3320C,3325C,3340C,3358C
2) Any special requirements about pins, attachments, and plates can be meet.
3) Color available: natural, yellow, blue, and so on
We are the leading top Chinese chain manufacturer, and are specializing in various high quality Agricultural Chain. We comply with DIN, ANSI, or ISO standard as per customer's request.
We can also supply chain as below:
1. Roller chains with straight side plate (A series) ;08A to 48A
2. Roller chains with straight side plate (B series) :04B to 48B
3. Short pitch conveyor chain with attachments : O8A to 16B with attachment
4. Conveyor chain with special attachments (A series) : C08A-1 to C32A-3
5. Conveyor chain with special attachments (B series) : C08B-1 to C32B-3
6. Conveyor chain with special attachments : A1,K1,WK1,WK2,WA1,WA2
7. Short pitch conveyor chain with extended pins :40HP,50HP,60HP,80HP.
8. Conveyor chain with special extended pins
9. Double pitch conveyor chains
10. Double pitch conveyor chain with attachments
11. Double pitch conveyor chain with special attachments
12. Double pitch conveyor chain with extended pins
13. Double plus chains
14. Lumber conveyor chain & attachments
15. Sharp top chains
16. Roller chain with vulcanised elastomer profiles
17 .Roller chain with U type attachments
18. Roller chain with plastic attachments
19. Plastic chains
20. Roller chain with plastic rollers
21. Various conveyor chains
22. Conveyor chains(M series)
23. Conveyor chain with attachments(M series)
24. Conveyor chains(MT series)
25. Hollow pin conveyor chains(MC series)
26. Conveyor chains(FV series)
27. Conveyor chain with attachments(FV series)
28. Conveyor chains(FVT series)
29. Hollow pin conveyor chains(FVC series)
30. Non-standard hollow pin conveyor chains
31. Conveyor chains(Z series)
32. Conveyor chain with attachments(Z series)
33. Conveyor chains(ZE series)
34. Hollow pin conveyor chains(ZC series)
35. Conveyor chains
36. Conveyor chain with attachments
37. Steel chains for age disposal
38. Special conveyor chains
39. Universal movement conveyor chains
40. Conveyor chains for hoisting
41. Welded conveyor chains
42. Roller chains for textile machinery
43. Roller chains for folio transport(Gripper)
44. Support chains
45. 78PF1 conveyor chains
46. Conveyor chains for paper mill
47. Conveyor chains for metal decorating system
48. To top chain-curved movement
49. Double flex chains
50. Hollow pin chains
51. Engineering bush chains
52. Engineering bush chain with attachments
53. Escalator step-chains
54. Conveyor chains for steel mill
55. Scraper conveyor chains
56. Welded steel chains
57. Welded steel chain with attachments
58. Steel pintle chain
59. Steel pintle chain with attachments
60. Conveyor chains for fibreboard equipment
61. Conveyor chains for crawler asphalt paver
62. Palm oil chains
63. Sugar chains
64. Flat-top conveyor chains
Applications:
Our Agricultural Chain can be used widely in factory product line like sugar, rubber, auto mobile, cement, rice mills, food, meat, beverage, and milk processing line, electronic and mechanical products assembly line. And agriculture, pharmacy, chemical plant, packing, logistic also can be play a very good role
Specification:
|
Material
|
Alloy steel
|
|
Process
|
Assembled
|
|
Heat treatment
|
Case hardening, Meshbeltfurnace quenching heat treatment
|
|
Surface treatment
|
Blackened, Zinc galvanized, Nickel galvanized, Chroming, Colour Painting, or as per customer's request
|
|
Performance
|
High precision, high wear resistance, low noise, smooth and steady, high strength
|
|
Model number
|
S32, S45,S51,S52,S55,CA650, CA550,CA557,CA550V, CA555,CA2060H, 38.4R,38.4VB,S38, C208B,3320C,3325C,3340C,3358C
|
|
Packaging
|
Plastic bag ,carton box ,plywood case or customer requirement.
|
Technique parameter:
|
CHAIN NO.
|
PITCH
|
ROLLER DIAMETER
|
WIDTH BETWEEN INNER PLATES
|
PIN DIAMETER
|
PIN LENGTH
|
INNER PLATE DEPTH
|
ULTIMATE TENSILE STRENGTH
|
ULTIMATE TENSILE STRENGTH
|
WEIGHT PER METER
|
|
P
|
D1 MAX
|
B1 MIN
|
D2 MAX
|
L MAX
|
LC MAX
|
H2 MAX
|
Q MIN
|
Q0
|
Q
|
|
MM
|
MM
|
MM
|
MM
|
MM
|
MM
|
MM
|
KN
|
KN
|
KG/M
|
|
S32
|
29.21
|
11.43
|
15.88
|
4.45
|
26.7
|
28.8
|
13.2
|
8
|
42.6
|
0.86
|
|
S42
|
34.93
|
14.27
|
19.05
|
7
|
34.3
|
37
|
19.8
|
26.7
|
38.3
|
1.6
|
|
S45
|
41.4
|
15.24
|
22.23
|
5.72
|
37.7
|
40.4
|
17.3
|
17.8
|
20.5
|
1.66
|
|
S52
|
38.1
|
15.24
|
22.23
|
5.72
|
37.7
|
40.4
|
17.3
|
17.8
|
20.5
|
1.68
|
|
S55
|
41.4
|
17.78
|
22.23
|
5.72
|
37.7
|
40.4
|
17.3
|
17.8
|
20.5
|
1.8
|
|
S55R
|
41.4
|
17.78
|
22.23
|
8.9
|
41
|
44
|
22.4
|
44.5
|
50.8
|
2.49
|
|
S62
|
41.91
|
19.05
|
25.4
|
5.72
|
40.3
|
43
|
17.3
|
26.7
|
30.9
|
1.87
|
|
S77
|
58.34
|
18.26
|
22.23
|
8.9
|
43.2
|
46.4
|
26.2
|
44.5
|
50.8
|
2.65
|
|
S88
|
66.27
|
22.86
|
28.58
|
8.9
|
49.8
|
53
|
26.2
|
44.5
|
50.8
|
3.25
|
|
CHAIN NO.
|
P
|
G
|
F
|
W
|
H4
|
D4
|
K
|
|
MM
|
MM
|
MM
|
MM
|
MM
|
MM
|
MM
|
|
S42K1
|
34.93
|
50.8
|
74.9
|
17.5
|
14
|
8.3
|
11.5
|
|
S52K1
|
38.1
|
58.8
|
78
|
19
|
11.4
|
8.3
|
9.9
|
|
S62K1
|
41.91
|
66.8
|
95.4
|
22
|
11.4
|
6.5
|
13
|
|
S62F2
|
41.91
|
66.8
|
95.4
|
22
|
11.4
|
6.5
|
13
|
|
CHAIN NO.
|
P
|
F
|
W
|
G
|
H4
|
D4
|
|
MM
|
MM
|
MM
|
MM
|
MM
|
MM
|
|
S52F5
|
38.1
|
51.2
|
71.7
|
19
|
16.5
|
8.3
|
|
CHAIN NO.
|
P
|
E
|
F
|
W
|
C
|
D4
|
|
MM
|
MM
|
MM
|
MM
|
MM
|
MM
|
|
S52F4
|
38.1
|
37
|
53.8
|
69.5
|
29.4
|
6.4
|
|
CHAIN NO.
|
P
|
G
|
F
|
W
|
H4
|
D4
|
K
|
|
MM
|
MM
|
MM
|
MM
|
MM
|
MM
|
MM
|
|
S55RK1
|
41.4
|
25
|
63.6
|
90.4
|
15.5
|
8.6
|
12
|
|
CA550K1
|
41.4
|
22
|
52.5
|
76.2
|
12.7
|
8.3
|
10
|
|
CHAIN NO.
|
P
|
G
|
F
|
W
|
H4
|
D4
|
|
MM
|
MM
|
MM
|
MM
|
MM
|
MM
|
|
CA550F1
|
41.4
|
22.23
|
53.95
|
70.6
|
12.7
|
9.9
|
|
CA550F2
|
41.4
|
22
|
50.8
|
72
|
14.7
|
8.5
|
Competitive Advantage:
More than 20 years advanced technology and experience of us will give strong support for the Agricultural Chain you need. We will understand your need of product quickly, and give quick respond and good service. A lot of cases of our products will show you that it worth your trust.
Under the full quality control system, our products go through the precise product line and strict testing process. We have excellent working flow and standard to ensure stability, products reliable enough for using.
Take our scale economy, raw material superiority, and sincerity for clients to account, our price do have a great competitiveness. They are good value and cost effective than your imagine.
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
