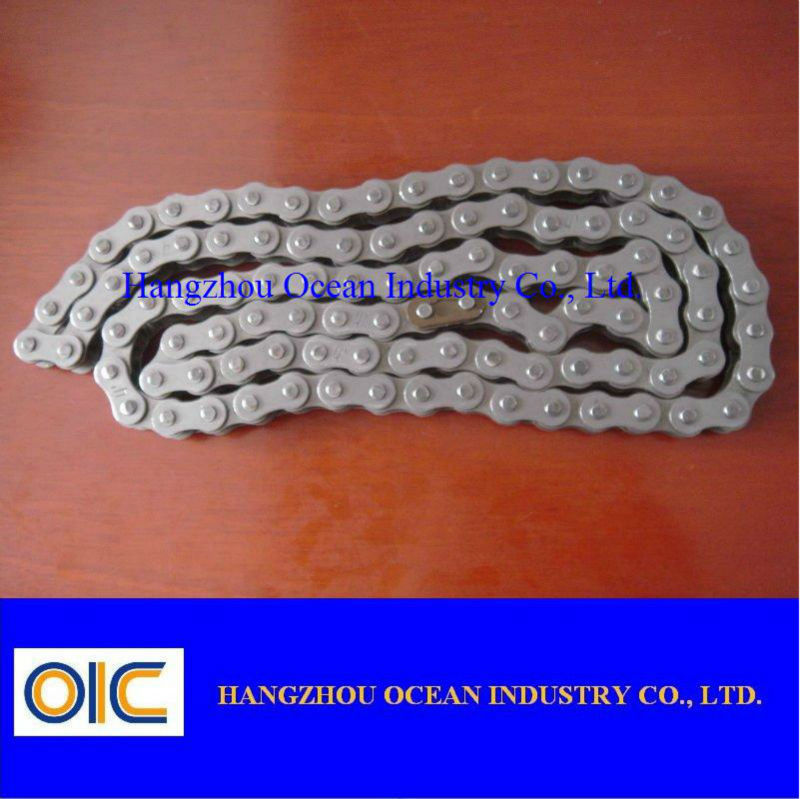

ANSI / BS / DIN Transmission Spare Parts Timing Chain For Motorcycle Engine

ANSI / BS / DIN Transmission Spare Parts Timing Chain For Motorcycle Engine

  • ANSI / BS / DIN Transmission Spare Parts Timing Chain For Motorcycle Engine
ANSI / BS / DIN Transmission Spare Parts Timing Chain For Motorcycle Engine
Product Details:
Place of Origin: China
Brand Name: MW
Certification: ISO
Model Number: 5, 25H, 25SH
Payment & Shipping Terms:
Minimum Order Quantity: 1000m
Price: Negotiation
Packaging Details: Standard sea worthy package
Delivery Time: Negotiation
Payment Terms: T/T, L/C
Supply Ability: 1000000M/week
Contact Now
Detailed Product Description
High Light:

automatic transmission components

,

precision transmission parts

ANSI / BS / DIN Transmission Spare Parts Timing Chain For Motorcycle Engine





Quick Detail:



Motorcycle chain

40Mn material
ANSI, BS, DIN and JIS etc standard
With high quality and competitive price

Prompt delivery

Packing as per customer’s demand.





Description:



1) Material: 40Mn

2) Color: nature, black, blue, yellow

3) Advanced heat treatment process, mesh belt conveyor furnace use, chain dry machine

4) Standard: ISO/ DIN /ANSI

5) Pre stretch and anti fatigue to make chain life longer

6) Manufacture and OEM

7) Packing : 1pc/pp bag, white or color inner box, then pack in standard export carton or wooden case, also can packing as your requirement





Our main products as the following:



1) Motorcycle timing chains: 25, 25H, 25SH

2) Motorcycle driven chains: 415,415H,415P,420,420H,420P,428,428H,428P,520,520H,520P,530,530H,530P,630 and series of super reinforced chain.

3) Motorcycle O-ring chain: 520-O,525-O,530-O,420H-O,428H-O,520H-O,525H-O,530H-O

4) Motorcycle HD Non-O-ring chain: 428HD,520HD,525HD,530HD,630HD

5) Motorcycle Super O-ring chain: 520-SO,525-SO,530-SO,420H-SO,428H-SO,520H-SO,525H-SO,530H-SO

6) Motorcyle silent chain: CL04A2x3, CL04A3x4, CL04A4x5, CL04A2x3, CL04A3x4, CL04A4x5

7) Automotive engine timing roller chain: 06BT-1,06BT-2,06BN-1,06BH-1,06BH-2,06BH.a-2,05E-1,05H-1,05H-2,05BT-1,05BT-2

8) Automotive engine timing bush chain: 04M-1,04M-2,219HT-1,T8F-1,05CT-1,05D-2,C06C-2,06CT-1,06CN-1,06CB-1,06CG-1,06CT-2,06CT.a-2,06CN.a-2,06D-2

9) Automotive engine timing slient chain: SCR04F-9,SCR04G-9,SCR04H-9,SCR04E-9,CL04H-9,CL04Y-9,CL04F-9,SC03-8,SCR05F-8,SCR05-9,SCR05-15,SCR06E-8





Applications:



Our motorcycle chain are use in all kinds of motorbike like Honda, Yamaha, Suzuki, Kawasaki and so on .





Specification:





ZHC Chain No.

Pitch

Roller diameter

Width between inner plates

Pin diameter

Pin length

Inner plate depth

Plate thickness

Ultimate tensile strength

Average tensile strength

Fatigue

p

d1 max

b1 min

Ld2 max

max

Lc max

h2 max

T1

Q min

Q0

amx

mm

mm

mm

mm

mm

mm

mm

mm

kn

kn

kgf

06B

9.525

6.35

5.72

3.28

13.2

14.2

8.2

1.3

9

10



415

12.7

7.75

4.88

3.96

12.5

13.9

10.4

1.3

11.6

12.5

380

415H

12.7

7.75

4.88

3.96

13.1

14.5

11.5

1.5

15.6

16.1

380

420

12.7

7.77

6.35

3.96

14.5

16.1

12

1.5

16

16.5

380

420H

12.7

7.77

6.35

3.96

15.7

17.4

12

1.8

17

17.5

380

428

12.7

8.51

7.75

4.45

16.5

18.05

12

1.6

17.8

18.5

380

428H

12.7

8.51

7.75

4.45

18.3

19.08

12

2.03

20.6

21.1

450

428HG

12.7

8.51

7.75

4.51

18.9

20.1

12.3

2

20.6

21.5

450

520

15.875

10.16

6.35

5.08

17.7

19

15

2

26.5

29.5

650

520H

15.875

10.16

6.35

5.24

18.9

20.5

15

2.42

30

31

700

525

15.875

10.16

7.94

5.08

18.8

20.5

15

2.03

26.6

29

650

525H

15.875

10.16

7.74

5.24

20.4

22.2

15

2.42

30

31

700

530

15.875

10.16

9.4

5.08

20.9

22.2

15

2

26.5

29.7

650

530H

15.875

10.16

9.4

5.08

21.9

24.2

15

2.42

30

31.5

700

630

19.05

11.91

9.4

5.94

22.2

24

18

2.4

35

37

800





Competitive Advantage:



More than 20 years advanced technology and experience of us will give strong support for the motorcycle chain you need. We will understand your need of product quickly, and give quick respond and good service. A lot of cases of our products will show you that it worth your trust.

Under the full quality control system, our products go through the precise product line and strict testing process. We have excellent working flow and standard to ensure stability, products reliable enough for using.

Take our scale economy, raw material superiority, and sincerity for clients to account, our price do have a great competitiveness. They are good value and cost effective than your imagine.

We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
