Beijing Automobile Spare Part Co.,Ltd.
High quality, Best service,Reasonable price.
Place of Origin: | China |
Brand Name: | MW |
Certification: | ISO |
Model Number: | 40SB,43SB,50SB,60SB,63SB,80SB,08BSB,08BSBY1,10BSB,12BSB,C2050SB |
Minimum Order Quantity: | 100m |
---|---|
Price: | Negotiation |
Packaging Details: | Standard sea worthy package |
Delivery Time: | Negotiation |
Payment Terms: | T/T, L/C |
Supply Ability: | 1, 000, 000M/week |
High Light: | automatic transmission components,precision transmission parts |
---|

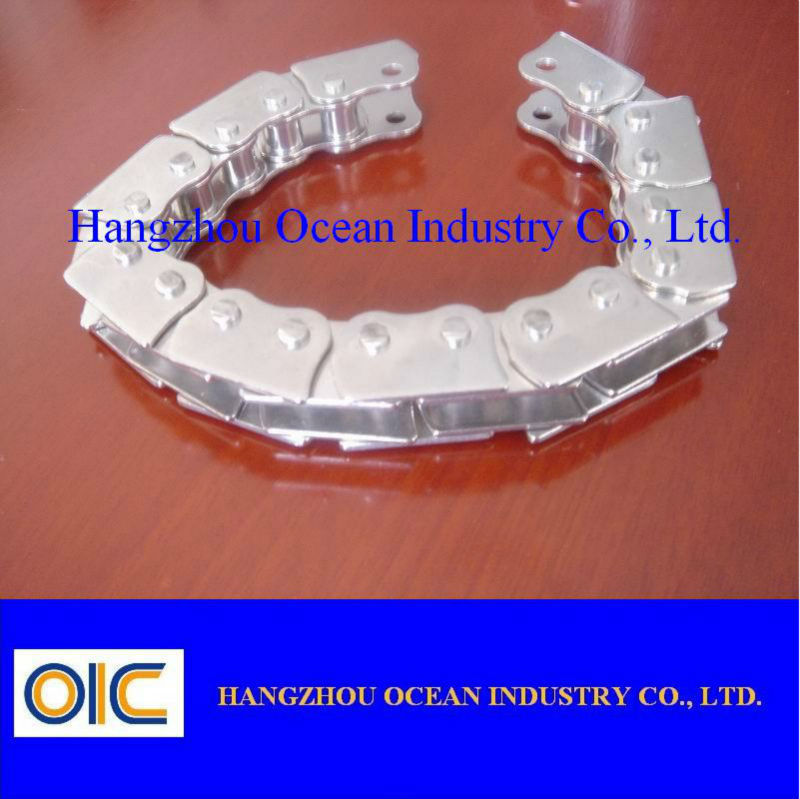

Window ANTI-BOW Chain 40SB , 43SB , 50SB , 60SB , 63SB , 80SB , 08BSB , 08BSBY1 ,10BSB , 12BSB , C2050SB
Quick Detail:
Window ANTI-BOW Chain
Standard and non-standard available
With high quality and competitive price
Prompt delivery
Packing as per customer’s demand.
Description:
Window ANTI-BOW Chain
Technique Treatment |
|||
1 |
Shot Peening |
8 |
Quenching |
2 |
Bluing |
9 |
Tempering |
3 |
Phosphating |
10 |
Oiling |
4 |
Nickel-plated |
11 |
Greasing |
5 |
Zincing |
12 |
Special color |
6 |
Heat Treatment |
13 |
Stain proofing |
7 |
Carburzing |
14 |
Pre-stretched and anti-fatigue |
2. Good quality: products conformed to ISO, ANSI, GB, BS, DIN standards.
3. The material of anti-bow chain' parts usually choose stainless steel, but also according to customer's requests, it may choose carbon steel, they will be introduced the different coating treatment, such as zinc plating, nickel plating, chrome plating and dacromet plating etc
Applications:
Anti-bow Chain is assembled with chain type opening window machines. It used for shoving and pulling the windows.
Specification:
Chain no. |
Pitch |
Pin diameter |
Pin length |
Plate dinension |
Side bow radius |
Weight per meter |
|||
P |
d2 max |
L |
h2 max |
G max |
T max |
R1 |
R2 |
q |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/m |
|
P12.75SB |
12.75 |
7.4 |
10.65 |
14.25 |
12.8 |
2.5 |
500-800 |
1000 |
0.69 |
P12.75SBF1 |
12.75 |
7.4 |
11 |
14.25 |
12.8 |
2.5 |
500-800 |
1000 |
1.08 |
Chain no. |
Pitch |
Roller diameter |
Width between inner plates |
Pin diameter |
Pin length |
Plate dinension |
Ultinate tensile strength |
||
P |
d1 max |
b1 |
d2 max |
L max |
H max |
h |
T |
Q min |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kN |
|
P11.5SS |
11.50 |
6.00 |
3.00 |
3.00 |
10.80 |
13.50 |
8.50 |
1.5/1.5 |
5.50 |
Chain no. |
Pitch |
Roller diameter |
Width between inner plates |
Pin diameter |
Pin length |
Plate dinension |
Ultinate tensile strength |
Weight per meter |
|||
P |
d1 max |
b1 |
d2 max |
L max |
Lc max |
H max |
h |
t/T max |
Q min |
q |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kN |
kg/m |
|
06BF33SS |
9.525 |
6.35 |
5.72 |
3.28 |
13.15 |
14.10 |
12.38 |
7.88 |
1.30 |
6.2 |
0.63 |
06BF34 |
9.525 |
6.35 |
3.80 |
3.28 |
10.00 |
- |
12.38 |
7.88 |
1.04 |
7.0 |
0.47 |
*06CF22 |
9.525 |
5.08 |
4.77 |
3.58 |
11.60 |
- |
12.86 |
8.38 |
1.30 |
7.9 |
0.51 |
08BF6 |
12.700 |
7.95 |
7.85 |
3.96 |
16.60 |
17.80 |
17.00 |
11.00 |
1.50 |
13.8 |
0.91 |
415BF4 |
12.700 |
7.75 |
4.88 |
4.09 |
16.40 |
17.80 |
17.00 |
11.00 |
1.3/3.1 |
12.0 |
1.07 |
08BSSF20 |
12.700 |
8.51 |
7.75 |
4.45 |
16.70 |
18.20 |
16.50 |
10.50 |
1.60 |
12.0 |
1.06 |
08BSSF74 |
12.700 |
8.51 |
7.75 |
4.45 |
18.80 |
- |
15.50 |
9.70 |
1.85 |
13.0 |
1.19 |
P12.7F4 |
12.700 |
7.50 |
5.50 |
4.45 |
15.60 |
- |
14.30 |
8.50 |
2.03 |
15.0 |
0.99 |
Chain no. |
Pitch |
Roller diameter |
Width between inner plates |
Pin diameter |
Pin length |
Plate dinension |
Ultinate tensile strength |
||
P |
d1 max |
b1 |
d2 max |
L max |
H max |
h |
t/T max |
Q min |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kN |
|
06CF31SS |
9.525 |
5.08 |
4.5 |
3.58 |
11.5 |
12.38 |
7.88 |
1.30 |
5.2 |
P12.7F3SS |
12.700 |
7.50 |
5.5 |
4.45 |
15.6 |
14.30 |
8.50 |
2.03 |
12.0 |
Competitive Advantage:
More than 20 years advanced technology and experience of us will give strong support for the Window ANTI-BOW Chain you need. We will understand your need of chain quickly, and give quick respond and good service. A lot of cases of our products will show you that it worth your trust.
Under the full chain quality control system, our products go through the precise product line and strict testing process. Especially at heat treatment, the code process of all, we have excellent working flow and standard to ensure stability, products reliable enough for using.
Take our scale economy, raw material superiority, and sincerity for clients to account, our chain price do have a great competitiveness. They are good value and cost effective than your image.
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
