Full auto knife pleating machine

China Full auto knife pleating machine supplier
Full auto knife pleating machine supplier Full auto knife pleating machine supplier

Large Image :  Full auto knife pleating machine

Product Details:

Place of Origin: CHINA
Brand Name: DJJ
Model Number: DJJ-55-2400
Contact Now
Detailed Product Description

Introduction

Blade/knife pleating machine has been designed for production of parallel type pleats on media such as polyester filter paper (for dust filter), wooden pulp filter paper (for car/truck/industrial air/oil/fuel filter), glass fiber paper (for HEPA filters) , various types of stainless steel and other wire meshes combination of layers of fabric (for air filter), blinds, etc. Different media require the machine have different accessories and design, so the media need to be specified when customer orders the machine.

The standard model is available in working widths of 800, 1000, 1500, 2000, 2400, or 3000mm and can undertake pleating in any pleat depth from 10-55mm, 50-105mm or 100-150mm, You need choose the width and pleat depth before you place order.

The pleating machine equipped with PLC, if you require lower price, it could be manual adjustable type.

These machines are suited and used for pleating of a variety of medias. It must however be noted that certain medias require pre-heating and post heating for correct formation of the pleats. The counter pressure arrangement can be varied and would result in pleat formation profiles as desired by the customer.

Full Auto Knife Pleating Machine (Code: DJJ-55-2400)

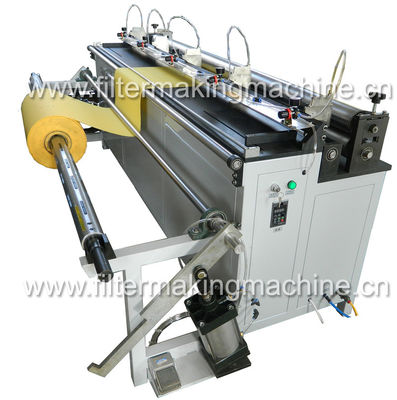

Auto Decoiler and Slitter 2400mm

  1. Max. media can be load: 2400mm
  2. Air Shaft: 74-78 mm diameter.
  3. Auto upload by air cylinder, Max.upload 500kg
  4. Five pieces pneumatic knife cut the media by length way
  5. Photoelectric switch to control media feed speed according to pleater speed

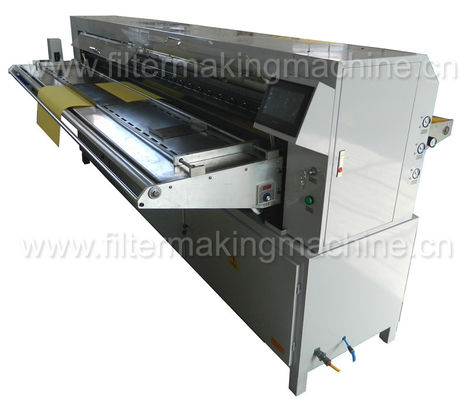

Knife pleating machine 2400mm

  1. Pleating height: 10- 50mm
  2. Layers pleated: 1 - 5
  3. Pleating speed: 20 - 150 pleats/min (according different pleat height)
  4. Max. Pleating width: 2400mm
  5. Thickness of material: 0.2 - 3mm
  6. Speed adjustable motor: 1.5KW
  7. Power: 1.5KW 380V Heater Power: 3KW Maximum Heat Temperature: 160° C
  8. PLC control
  9. Machine weight: 1200KG
  10. Machine dimension: 2730mm x 1850mm x 1600m
  11. Touch screen, batch and pleats counter
