PG Control Inverter High Voltage IPE200 Engineering Transmission Frequency

PG Control Inverter High Voltage IPE200 Engineering Transmission Frequency

  • PG Control Inverter High Voltage IPE200 Engineering Transmission Frequency
PG Control Inverter High Voltage IPE200 Engineering Transmission Frequency
Product Details:
Place of Origin: China
Brand Name: INVT
Model Number: IPE200
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Payment Terms: T/T, O/A, L/C
Contact Now
Detailed Product Description
Input Voltage: 3AC 660/690V (±15%) Input Frequency: 50/60Hz(±6%)
Output Voltage: 0~Rated Input Voltage Output Frequency: 0~400Hz
Control Mode: PG, V/F Speed Control Accuracy: ±0.5% Of The Max. Speed (Vector Control Without PG
Overload Capability: 150% Of The Rated Current: 60s;180% Of The Rated Current:10s; 200% Of The Rated Current:1s
High Light:

invt frequency inverter

,

intelligent inverter



PG Control Inverter High Voltage IPE200 Engineering Transmission Frequency





Description



INVT interver IPE200 series is high performance engineering transmission product researched and developed by INVT on its own, combining the requirements of engineering application, INVT inverter IPE200 series have wide-range advantages including small volume, strong function, flexible configuration and convenient maintenance; according to the requirements of the users, it can provide single-transmission frequency inverter products and multi-transmission frequency inverter products.



Specifications



3AC 400V±15% 1.5~1500KW

3AC 690V±15% 5.5~1900KW



Features



1.Strong control performance: use imported core controller and guarantee complete realization of control function of its frequency inverter;
2. Wide application range: the performance of frequency inverter is strong, which can satisfy various use working status;
3. Small volume: modularized structure design, which is significantly shrinking than the same type of frequency inverter;
4. Convenient maintenance: power unit uses handcart style installed cabinet structure, which is convenient for dismantling and installment, and it can bed configured with maintenance tools, and shorten maintenance time significantly; 5. Strong anti-EMC capacity: power unit and control unit are separable, and it is convenient for frequency inverter to form cabinet and anti-interference capacity is strong;
6. Strong heat dissipation capacity: use bottom blowing cooling method of centrifugal turbine blower, copper board radiator structure, and cooling efficiency is higher;
7. Flexible power unit configuration: it can realize big capacity output in parallel with power unit, and improve equipment interchanging property, and spare parts are less;
8. The device is configured with operation panel, and support Chinese interface, which can be installed in transmission cabinet door flexibly;
9. Frequency inverter is superimposition of rectification module and inverter, which is easy for replacement and convenient for maintenance.



Applications



IPE200 Engineering Drive Inverter



IPE200 series is a high-performance driving device that INVT independently developed to meet engineering demand. IPE200 series features small size, excellent functions, flexible configuration and easy maintenance; According to user needs,IPE200  series,it can provide single drive inverters and multi-drive inverters.

1. Strong control: the core control is imported from abroad which ensures this inverter has good control performance;

2. Wide applications: this inverter can be used on various working conditions;

3. Small sizes: depending on modular design, this inverter is of smaller sizes in comparison with similar products;

4. Easy to maintain: the power unit adopts handcart-type chassis structure, therefore, it is easy to take down and install. It also helps to shorten maintenance time when working with maintenance tools.

5. Strong EMC resistance: the power unit and control unit are separated; therefore, the inverter is easy to be erected and has strong anti-interference ability;

6. Great heat dissipation potential: this inverter adopts centrifugal turbo blower for bottom blowing and cooling and also has cooper plate heat dissipater to achieve high cooling efficiency;

7. Flexible configuration of power unit: the power unit can be connected in parallel to achieve high-capacity output, increase equipment interchangeability and save spare parts.

8. The operation panel support Chinese display and can be flexibly installed on cabinet door.

9. IPE200 series has rectifier module overlaying inverter part, therefore, it is easy to be maintain and replace.

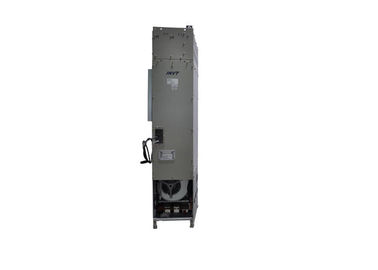

              PG Control Inverter High Voltage IPE200 Engineering Transmission Frequency 0
