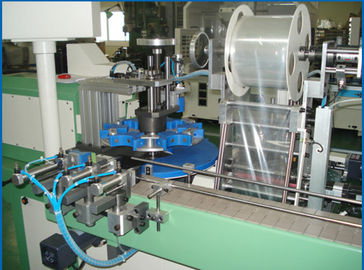

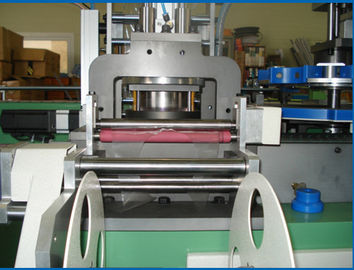

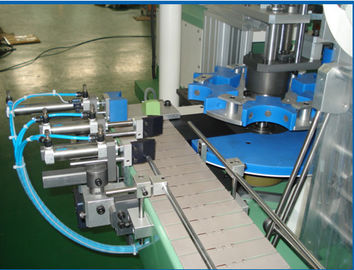

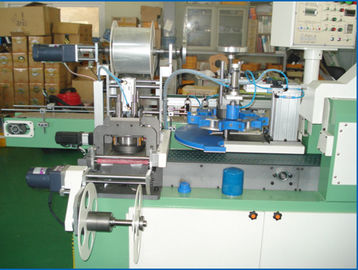

Auto Turntable Dust Caps Holding Machine 3P 380V For Spin-On Filter
1. Product Capacity : 20 ~ 40 pcs / min
2. Available Filter Dia : Φ 60 ~ 102 mm
3. Available Filter Width : 60 ~ 150 mm
4. Available Vinyl Width : 70 ~ 150 mm
5. Air Pressure : 6 Kgf ㎠/
6. Electric Power : 380V x 50Hz x 3P
7. Machine Size : (W) 1,000 x (L) 3,500 x (H) 1,500
8. Machine Weight : 400 Kg
1.Electric and pneumatic controls are used by the dust caps holding machine.
2.The feed movement is carried out for the first roller and second roller by two sets of cam mechanics.
3.Loading and unloading of the processing port will be done by the pneumatic parts that are controlled by the pre-determined program.
4.This machine adopts the high precise import divider to ensure the seaming quality.
5.This is high speed dust holding machine
6.It is Full Automatic System Shrink Film Blanking is Precise Size for being worked feeding roller by Steeping Motor
7.It can print your Company & Brand Name on the Vinyl.
8.It adopts Cam System.
1. The machine is professional used to hold the spin-on filter caps with the plastic film.
2.It is desinged to prevent the Entering of substance Like Dust from Filters.
3.Its Processing is Cutting the Vinyl, moved from Vinyl Roll in a circle and rewinds the Scrap & Robot Lift
4.up the Filter upward the Circular vinyl.
