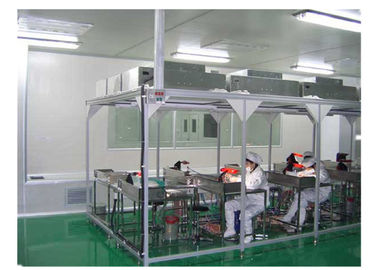

Aerospace / Electronics Softwall Clean Room Chamber With HEPA Air Filter 110V / 60HZ

Aerospace / Electronics Softwall Clean Room Chamber With HEPA Air Filter 110V / 60HZ

  • Aerospace / Electronics Softwall Clean Room Chamber With HEPA Air Filter 110V / 60HZ
  • Aerospace / Electronics Softwall Clean Room Chamber With HEPA Air Filter 110V / 60HZ
Aerospace / Electronics Softwall Clean Room Chamber With HEPA Air Filter 110V / 60HZ
Product Details:
Place of Origin: China
Brand Name: K-LING
Certification: CE,
Model Number: KEL-KLF3500
Payment & Shipping Terms:
Minimum Order Quantity: 1SQM
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 2000sqm/month
Contact Now
Detailed Product Description
Products Name: Softwall Clean Room Other Name: Moudlar Cleanroom
Purification Rank: Class 100-10000 Material: Steel With Power Coated
Hepa Filtration: 99.99%@0.3um Fan Filter Unit: 1220x610x350mm
Application: Class100 Lab Laboratory Cleanroom Size: As Cleint Request
Usage: High Clean Liness Laborotory Function: Purification Filter
Wind Speed: 0.45m/s
High Light:

Laboratory clean room

,

portable clean room

Aerospace / Electronics Softwall Clean Room Chamber With HEPA Air Filter 110V / 60HZ









A fan filter unit is a motorised unit which supplies clean, filtered air to a cleanroom. Air is drawn via the fan, through a pre-filter and then through a HEPA or ULPA filter which filters the sub-micron particles ensuring a clean and processed air supply. Using FFUs to provide localised clean air is a more energy efficient route than using a traditional Air Handling Unit (AHU) and is a more frequently adopted approach in modern cleanroom design.





Applications:

 1:Food industry,

 2: aerospace,

 3: life sciences,

 4: biotechnology,

 5: medical devices,

 6:plastic injection module,

 7: electronics assembly

  8: hospital pharmacy

 Aerospace / Electronics Softwall Clean Room Chamber With HEPA Air Filter 110V / 60HZ 0
Operating features

1: The ceiling enables flexible placement of fan filter unit, the empty bays cover by powder coated steel panels.
2: the construction utilizing full welded, reinforced, steel tubular sections. The frame is finished with an abrasion-resistance oven-baked powder coat, it is free-standing not require any suspending ceiling supports
3: the PVC anti-static curtain door allowing for easy passage of material and personnel in and out of the clean area. The curtain terminated at a specific distance above the floor to allow for exhaust of clean air out of the clean room.
4: Control box can rapid start up the fan filter unit and lighting.
5: Fan filter unit is the energy efficient external rotor motor design reduces operating costs and has extremely low noise and vibration levels, improving the working conditions in the clean room.
6: the high quality mini-pleats HEPA filter utilizing an improved mini-pleated separation technique to maximize surface area improves efficiency and extends the filter life.



Illustration:

1:  The frame is steel cube with milk powder coated.
2:  M support leg
3:  The wall made from clarity synthetic glass.
4:  FFU control box.
5:  FFU with HEPA filter and pre-filter
6:  Purification lamp
7:  PVC strip curtain
8:  Purification rank class100-1000 (FS209E Stander)




Technical Parameter:

MODEL

KEL-LFB3500

Ex size (mm)
(W*D*H)

3500X3500X2596mm

In size (mm)

3400x3400x2205mm

Purification rank

Class10-300,000(FS209E USA)

HEPA filter

Efficiency : 99.99% @ 0.3um - 99.999% @ 0.12um (MPPS)

Pre-filter

Efficiency : 85% @ 5um

Control system

 PC control system / promised speed by control box

Pressure Gauge

 American Dywer pressure

Noise

<50-55 dB  (test point distance is 1m)

 Air velocity
(m3/h)

    0.2-0.5m/s Adjustable   (test point distance is 30cm)

Frame material

 stainless steel/steel with power coated/Cast aluminum profile

Wall frame

Tempered glass / PVC anti-static curtain (option)

Fan

EBM Fan /Taiwan fan/ Domestic fan (option)

Power suppler

    AC110/220v  50HZ/60HZ



Customer’s design is available.
